Selection of Wind Curtain Machine

1. Hotels, guesthouses, conference halls, office buildings and other relatively quiet places

When choosing a wind curtain fan, the main considerations are the height of the entrance, on-site installation conditions, and noise. Based on experience, the height of the door heads in these places is generally within 2.5 meters, and most of them are made of stainless steel door frames; In order to match the surrounding environment as a whole, it is generally recommended to choose a lightweight and stylish ordinary through flow air curtain machine with a clean appearance.

2. Places with high traffic such as restaurants, shopping malls, theaters, hospitals, etc

To choose a high air volume electric hot air curtain machine, due to its high electrical power, if the power supply conditions are limited and there is a central air conditioning hot water source, it is recommended to choose a water hot air curtain machine as much as possible, which can fully play an energy-saving role.

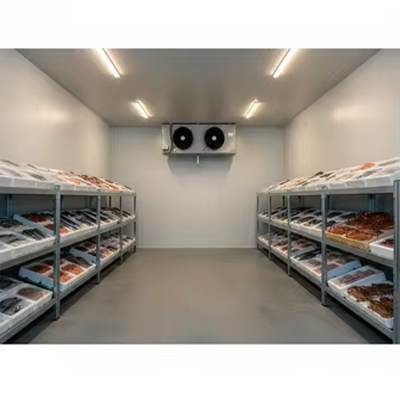

3. Cold storage, freezer

This type of place can use high air volume natural air curtains, which have a very good effect.

4. Constant temperature warehousing and logistics center

The doors of storage and logistics centers are generally over 4 meters high, so ordinary air volume air curtains are difficult to achieve the expected effect. Therefore, large air volume centrifugal air curtains with a wind resistance height of 4.5 meters are generally selected. Industrial air curtains can also be used.

5. Appearance selection

Select the type of air curtain machine based on the above conditions, and then choose the specific model of air curtain machine according to the width and height of the door. For example, if the width of the door is 3 meters, two 1.5-meter air curtain machines can be selected. The size of the air curtain machine is generally 900mm, 1200mm, 1500mm, and 1800mm. These sizes can be matched to achieve a coordinated and beautiful appearance.
